I totally forgot to attach before and after comparison in any useful form. Here you are!
Link to raw data – https://getcurve.io/dashboard/snapshot/K51QdSlbIfukb2HQLhSn2Bp508QPSeJt
TimeSpy 1080p

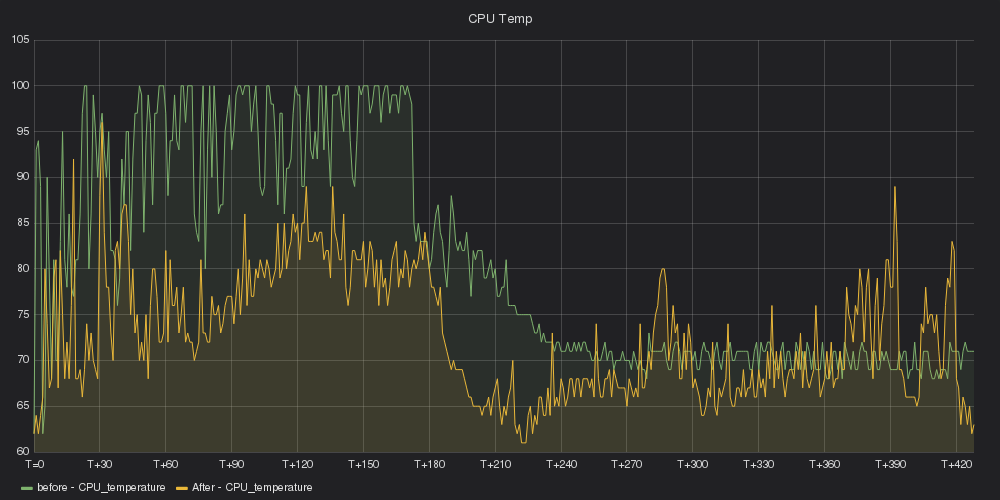

CPU Temps – lower all the way and not hitting 100 once!

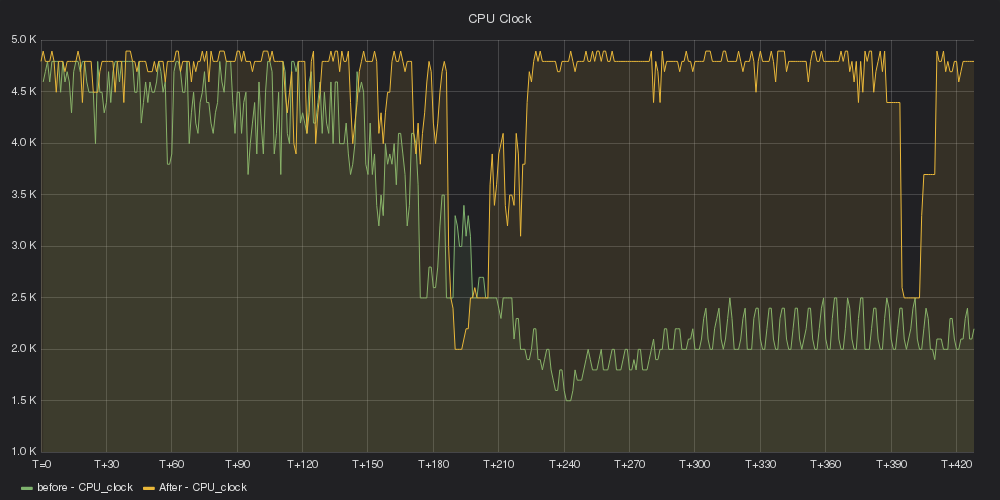

CPU Clock – does not fall off! 4,8GHz in the CPU test

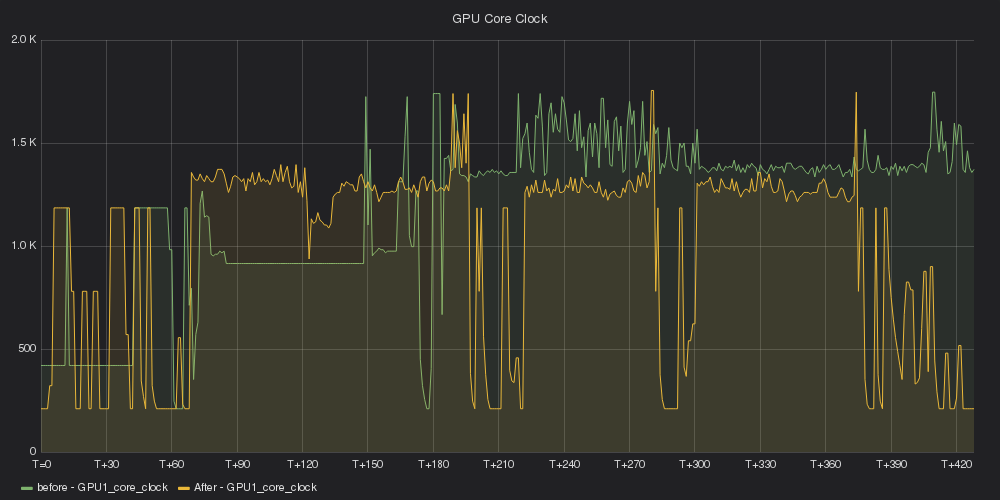

GPU Core Clock – higher in the first GPU test

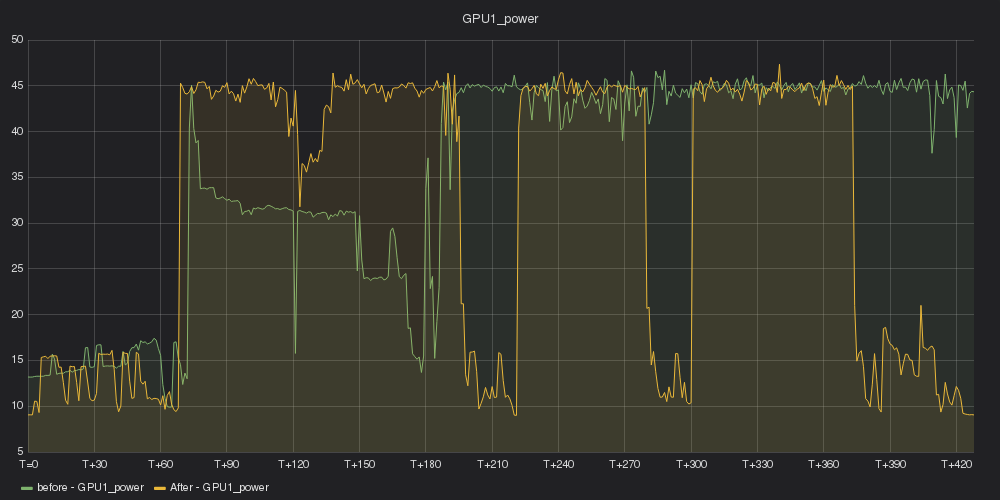

GPU Power – stayed at max in GPU tests and fall off in CPU to give it more power while before it stayed at 100% because CPU was too hot to use spare power.
Baldurs Gate 3 1080p Ultra- Huge temp diff

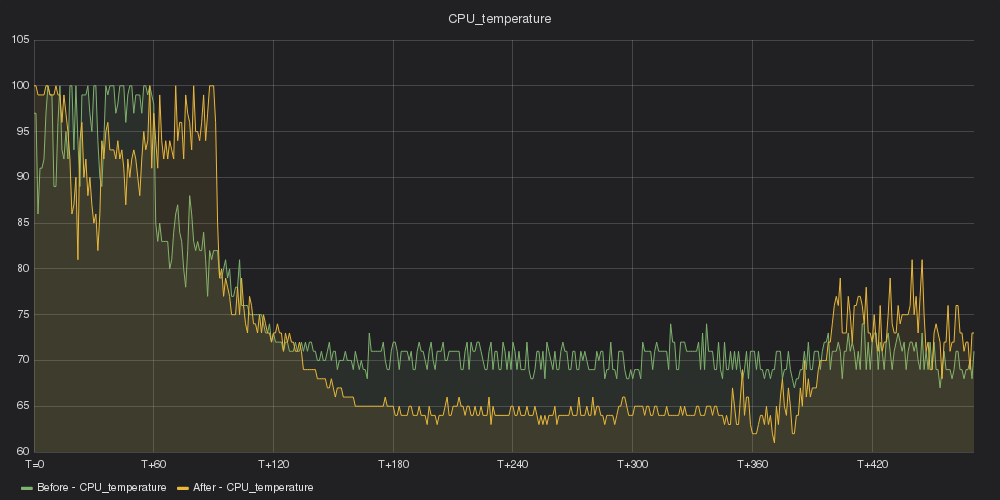

CPU Temp
All in all there is way better thermal dissipation. No more thermal throttling but is it faster? Not very much. But at least it stays fast and does not drop off proportionally to temperature.
On a side note, as this was my first benchmark ever – I need to work on standarizing them and timings to have graphs and data from the same time in test or in game.
Perefect comparison in Cinebench @ Multicore
Here we can see what happened. It stayed at the same speeds and power draw but at much lower temps.

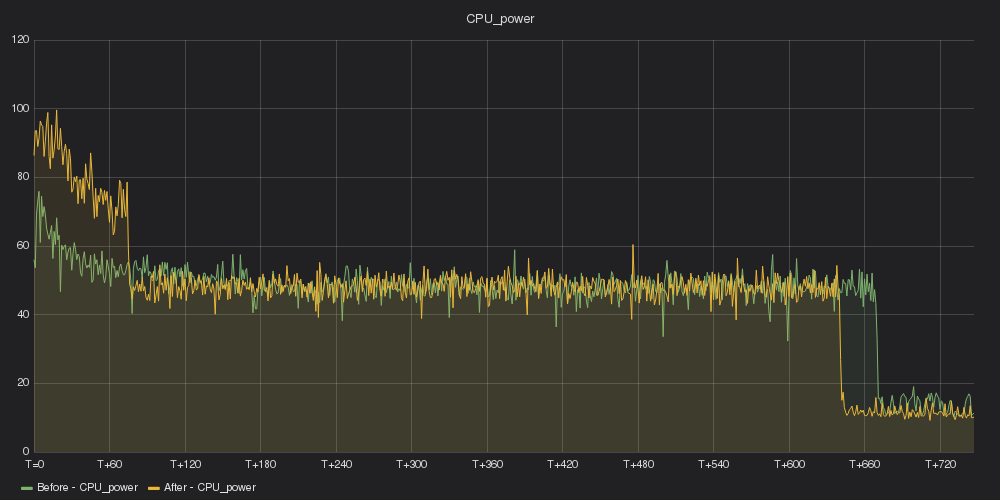

CPU Power

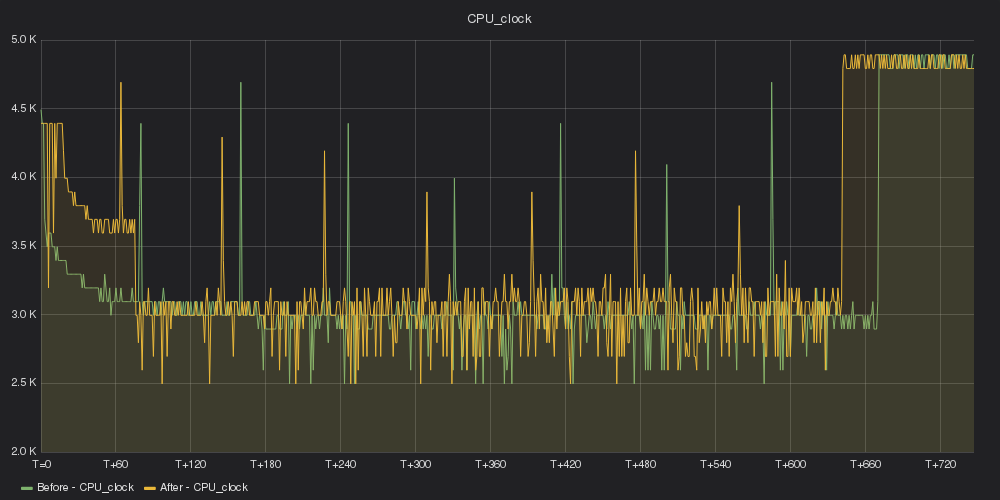

CPU Core Clock

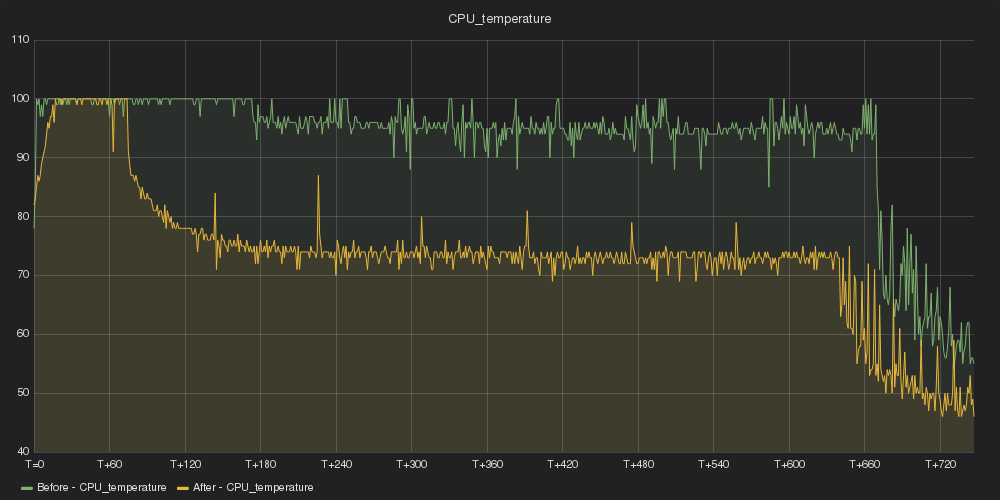

CPU Temp
